COMPACT fog system that everybody can afford !
Just 3,8 kG
UP TO 45 m2
390 m3 OF FOG
The patented revolution in fog system market.
Fog emission and saturation up to 390 m³ in 50 seconds
(130 m3 visibility less than 1 m)
It is a fog system with a small size and high performances.
Low power consumption.
Plastic cover maximize performances for wireless connections.
97% thefts avoided
Dimension L 26,5 x P 11,5 x H 32,5 cm
Wall and ceiling installation
 | Cod. FFXR500 Fluid refill 500 ml FOOD GRADE |
| Product code | FPUC390 |
| Weight | 3,8 Kg |
| Suggested square meters | up to 45 m2 |
| Max fog emitted in single shot | 390 m3 |
| Maximum shooting time | 50 sec. |
| Max fog emitted with full fog bag | 2340 m3 |
| N. of shots with max shooting | 6 |
| Pump | yes |
| Fog tank capacity | 500 ml |
| Working time without mains power | about 1 hour |
| Heating time | about 20 minutes |
| Horizontal mounting | yes with opzional kit |
| Serial bus with standard protocol | yes 2 serial |
| Power consumption | about 30 W |
| Back up battery | 1,2 Ah 12V |
| Electronic board | 2 inputs / 3 ouputs |
| Cover | plastic |
| Non-dangerous fog certification | yes |
| Shooting time programmable | yes |
 | Cod. SCODSC Desk stand |
 | Cod. URCLWF Active Cloud LAN/Wi-Fi board (optional WiFi antenna) |

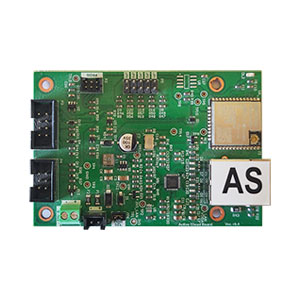

 | Cod. URCLWFS ActiveServer LAN / Wi-Fi board (optional WiFi antenna) |
 | Cod. URCLWFA WiFi antenna module |
 | Cod. FPUWBC Orientable wall bracket |
 | Cod. SCOFBHC Fluid bag holder for horizontal mounting |
 | Cod. SCOSSOC Side extra riser for second extra board or horizontal mounting |
 | Cod. SKITHM Compact Kit for horizontal mounting: side extra riser and fluid bag holder |
 | Cod. URCLWFC Mounting kit for Active Cloud/Active Server board: cable 12V and flat cable |
 | Compact 390 datasheet |
| Comparison chart between COMPACT fog system and SMOKE SYSTEMS Pyrotechnical |
