The Fast Pump Pro Plus line of fogging systems for small, medium and large environments.
Fogging system with patented FOG STORM PUMP and “LAYER” heating technologies.
The “LAYER” heating technology and the FOG STORM Pump, both UR FOG patents, give the FAST PUMP line the unique flexibility to protect small, medium and large volumes up to
UR FOG fogging systems are innovative in their technology and performances, in order to guarantee the most effective protection against thefts and they have different patents.
97% thefts avoided
5 models of anti-intrusion fog systems, two of which are unique for their power, speed and quantity of fog emitted in large volume environments and in open spaces.
5 FAST PUMP PRO PLUS MODELS
FAST 250 PUMP PRO PLUS
Fog emission and saturation
up to 750 m³ in 30 seconds
(250 m³ visibility less than 1 m)
Wall and ceiling installation
| Dimensions
|
| Product code | FPU250PP |
| Weight of the fogging machine | around 14 Kg |
| Weight with packaging | around 15 Kg |
| Units on one pallet (100×120 cm) | 24 |
| Dimension of the machine | L 27,0 x W 21,5 x H 43,5 cm |
| Dimension of the packaging | L 38,0 x W 26,0 x H 53,0 cm |
| Color | white |
| Working time without mains power | around 2 hours |
| Heating time from cold | around 50 minutes |
| Vertical mounting | yes |
| Horizontal mounting | yes |
| Usb port for computer monitoring | yes |
| Nozzle tamper | yes |
| Serial interface RS232 with UR FOG Standard protocol | yes |
| Lan Connection : Active Cloud | opzional |
| Heating system “Layer” | yes |
| Coverage in a single shot (visibility more than 1,5 m) | up to 750 m3 |
| Coverage in a single shot (visibility less than 1 m) | up to 250 m3 |
| Max seconds of fog emission | 30 sec |
| Max fog emitted with full fog bag | 1700 m³ |
| Number of bag | 1 |
| Fog tank capacity | 1 x 1000 ml |
| Shooting specification | programmable in seconds |
| Bag included | 1 |
| Mains power | 230 V or 120 V |
| Average power consumption | 37 W |
| 2 Ah 12V back up battery (not included) | yes |
| Pir sensor validation input | yes |
| Shot confirmation output | yes |
| Power supply | yes |
 | Cod. FFLXRC10FG Fluid bag 1000 ml |
 | Cod. FFLXRC10 Fluid bag 1000 ml |
 | Cod. FFLXRC33FG Fluid bag 3000 ml |
 | Cod. FFLXRC33 Fluid bag 3000 ml for TOP BOX |
 | Cod. F23PRUG7 Nozzle extention 7 cm |
 | Cod. F1M03UG3 3 holes nozzle |
 | Cod. F23KITD Demo kit: key, keyfob/receiver and button |
 | Cod. F23STHPROR Wall bracket |
 | Cod. URRE Relay board |
 | Cod. URRS232 Transceiver rs232 5/12 V |
 | Cod. URCLWF ActiveCloud LAN/WiFi board (optional WiFi antenna) |
 | Cod. URCLWFS ActiveServer LAN / Wi-Fi board (optional WiFi antenna) |
 | Cod. URREAC Relay board for mounting with Active Cloud/ Active Server board |
 | Cod. URCLWFA WiFi antenna module |
 | Cod. URCLWFPP Mounting Kit for Active Cloud/ Active Server board: flat cable pro plus and 3X20 mm spacers |
 | Cod. FFLXTP30 Top box fluid 3L |
 Download | Fast 250 Pump Pro Plus data sheet |
FAST 500 PUMP PRO PLUS
Fog emission and saturation
up to 1500 m³ in 30 seconds
(500 m³ visibility less than 1 m)
Wall and ceiling installation
| Dimensions
|
| Product code | FPU500PP |
| Weight of the fogging machine | around 16 Kg |
| Weight with packaging | around 17 Kg |
| Units on one pallet (100×120 cm) | 24 |
| Dimension of the machine | L 27,0 x W 21,5 x H 43,5 cm |
| Dimension of the packaging | L 38,0 x W 26,0 x H 53,0 cm |
| Color | white |
| Working time without mains power | around 2 hours |
| Heating time from cold | around 90 minutes |
| Vertical mounting | yes |
| Horizontal mounting | yes |
| Usb port for computer monitoring | yes |
| Nozzle tamper | yes |
| Serial interface RS232 with UR FOG Standard protocol | yes |
| Lan Connection : Active Cloud | opzional |
| Heating system “Layer” | yes |
| Coverage in a single shot (visibility more than 1,5 m) | up to 1500 m3 |
| Coverage in a single shot (visibility less than 1 m) | up to 500 m3 |
| Max seconds of fog emission | 30 sec |
| Max fog emitted with full fog bag | 1700 m³ |
| Number of bag | 1 |
| Fog tank capacity | 1 x 1000 ml |
| Shooting specification | programmable in seconds |
| Bag included | 1 |
| Mains power | 230 V or 120 V |
| Average power consumption | 42 W |
| 2 Ah 12V back up battery (not included) | yes |
| Pir sensor validation input | yes |
| Shot confirmation output | yes |
| Power supply | yes |
| Cod. FFLXRC10FG Fluid bag 1000 ml |
| Cod. FFLXRC10 Fluid bag 1000 ml |
| Cod. FFLXRC33FG Fluid bag 3000 ml |
| Cod. FFLXRC33 Fluid bag 3000 ml for TOP BOX |
| Cod. F23PRUG7 Nozzle extention 7 cm |
| Cod. F1M03UG3 3 holes nozzle |
| Cod. F23KITD Demo kit : key, keyfob/receiver and button |
| Cod. F23STHPROR Wall bracket |
| Cod. URRE Relay board |
| Cod. URRS232 Transceiver rs232 5/12 V |
| Cod. URCLWF ActiveCloud LAN/WiFi board (optional WiFi antenna) |
| Cod. URCLWFS ActiveServer LAN / Wi-Fi board (optional WiFi antenna) |
| Cod. URREAC Relay board for mounting with Active Cloud/ Active Server board |
| Cod. URCLWFA WiFi antenna module |
| Cod. URCLWFPP Mounting Kit for Active Cloud/ Active Server board : flat cable pro plus and 3X20 mm spacers |
| Cod. FFLXTP30 Top box fluid 3L |
| Download | Fast 500 Pump Pro Plus data sheet |
FAST 1500 PUMP PRO PLUS
Fog emission and saturation
up to 4500 m³ in 70 seconds
(1500 m³ visibility less than 1 m)
Wall installation and with 35° ceiling bracket
| Dimensions
|
| Product code | FPU1500PP |
| Weight of the fogging machine | around 29 Kg |
| Weight with packaging | around 31 Kg |
| Units on one pallet (100×120 cm) | 12 |
| Dimension of the machine | L 36,0 x W 28,5 x H 43,5 cm |
| Dimension of the packaging | L 51,0 x W 39,0 x H 52,5 cm |
| Color | white |
| Working time without mains power | around 2,5 hours |
| Heating time from cold | around 2,5 hours |
| Vertical mounting | yes |
| Horizontal mounting | optional (35°) |
| Usb port for computer monitoring | yes |
| Nozzle tamper | yes |
| Serial interface RS232 with UR FOG Standard protocol | yes |
| Lan Connection : Active Cloud | opzional |
| Heating system “Layer” | yes |
| Coverage in a single shot (visibility more than 1,5 m) | up to 4500 m3 |
| Coverage in a single shot (visibility less than 1 m) | up to 1500 m3 |
| Max seconds of fog emission | 70 sec |
| Max fog emitted with full fog bag | 1700 m³ |
| Number of bag | 1 |
| Fog tank capacity | 1 x 1000 ml |
| Shooting specification | programmable in seconds |
| Bag included | 1 |
| Mains power | 230 V or 120 V |
| Average power consumption | 60 W |
| 2 Ah 12V back up battery (not included) | yes |
| Pir sensor validation input | yes |
| Shot confirmation output | yes |
| Power supply | yes |
| Cod. FFLXRC10FG Fluid bag 1000 ml |
| Cod. FFLXRC10 Fluid bag 1000 ml |
| Cod. FFLXRC40FG Fluid bag 4000 ml |
| Cod. FFLXRC40 Fluid bag 4000 ml per TOP BOX |
| Cod. F23PRUG7 Nozzle extention 7 cm |
| Cod. F1M03UG3 3 holes nozzle |
| Cod. F23KITD Demo kit : key, keyfob/receiver and button |
 | Cod. F01STH Wall bracket |
 | Cod. F01CB35 35° celing bracket |
| Cod. URRE Relay board |
| Cod. URRS232 Transceiver rs232 5/12 V |
| Cod. URCLWF ActiveCloud LAN/WiFi board (optional WiFi antenna) |
| Cod. URCLWFS ActiveServer LAN / Wi-Fi board (optional WiFi antenna) |
| Cod. URREAC Relay board for mounting with Active Cloud/ Active Server board |
| Cod. URCLWFA WiFi antenna module |
 | Cod. URCLWF014 External mounting Kit |
 | Cod. FFLXTP40 Top box fluid 4L |
| Download | Fast 1500 Pump Pro Plus data sheet |
FAST 6000 PUMP PRO PLUS
Fog emission and saturation
up to 6000 m³ in 80 seconds
(2000 m³ visibility less than 1 m)
Wall installation and with 35° ceiling bracket
| Dimensions
|

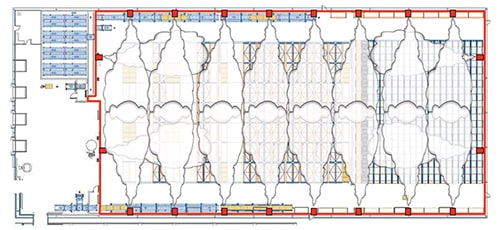

The protection capacity of over 10 fogging systems
in just 1 fogging system
Solution with UR FOG FAST 6000 PUMP2 FOGGING SYSTEMS :1,2 KW at start
| Solution with other products10 FOGGING SYSTEMS :From 10 to 15 KW at start
|
| Product code | FPU6000PP |
| Weight of the fogging machine | around 49 Kg |
| Weight with packaging | around 52 Kg |
| Units on one pallet (100×120 cm) | 4 |
| Dimension of the machine | L 44,0 x W 30,5 x H 43,5 cm |
| Dimension of the packaging | L 61,0 x W 49,0 x H 62,5 cm |
| Color | white |
| Working time without mains power | around 3 hours |
| Heating time from cold | around 2,5 hours |
| Vertical mounting | yes (bracket included) |
| Horizontal mounting | no |
| Usb port for computer monitoring | yes |
| Nozzle tamper | yes |
| Serial interface RS232 with UR FOG Standard protocol | yes |
| Lan Connection : Active Cloud | opzional |
| Heating system “Layer” | yes |
| Coverage in a single shot (visibility more than 1,5 m) | up to 6000 m3 |
| Coverage in a single shot (visibility less than 1 m) | up to 2000 m3 |
| Max seconds of fog emission | 80 sec |
| Max fog emitted with full fog bag | 6800 m³ |
| Number of bag | 1 |
| Fog tank capacity | 1 x 4000 ml |
| Shooting specification | programmable in seconds |
| Bag included | 1 |
| Mains power | 230 V or 120 V |
| Average power consumption | 80 W |
| 7,2 Ah 12V back up battery (not included) | yes |
| Pir sensor validation input | yes |
| Shot confirmation output | yes |
| Power supply | yes |
| Cod. FFLXRC40FG Fluid bag 4000 ml |
| Cod. FFLXRC40 Fluid bag 4000 ml |
| Cod. F23PRUG7 Nozzle extention 7 cm |
| Cod. F1M03UG3 3 holes nozzle |
| Cod. F23KITD Demo kit : key, keyfob/receiver and button |
 | Cod. F01WB35 35° wall bracket |
| Cod. URRE Relay board |
| Cod. URRS232 Transceiver rs232 5/12 V |
| Cod. URCLWF ActiveCloud LAN/WiFi board (optional WiFi antenna) |
| Cod. URCLWFS ActiveServer LAN / Wi-Fi board (optional WiFi antenna) |
| Cod. URREAC Relay board for mounting with Active Cloud/ Active Server board |
| Cod. URCLWFA WiFi antenna module |
| Cod. URCLWF014 External mounting Kit |
Cod. FPUM 2 handlers |
| Download | Fast 6000 Pump Pro Plus data sheet |
FAST 14000 PUMP PRO PLUS
Fog emission and saturation
up to 14000 m³ in 200 seconds
(4500 m³ visibility less than 1 m)
| Wall installation
| Dimensions
|
The protection capacity of over 10 fogging systems
in just 1 fogging system
Solution with UR FOG FAST 14000 PUMP2 FOGGING SYSTEMS :1,2 KW at start
| Solution with other products20 FOGGING SYSTEMS :From 20 to 30 KW at start
|
| Product code | FPU14000PP |
| Weight of the fogging machine | around 59 Kg |
| Weight with packaging | around 63 Kg |
| Units on one pallet (100×120 cm) | 4 |
| Dimension of the machine | L 44,0 x W 30,5 x H 43,5 cm |
| Dimension of the packaging | L 61,0 x W 49,0 x H 62,5 cm |
| Color | white |
| Working time without mains power | around 4 hours |
| Heating time from cold | around 5 hours |
| Vertical mounting | yes (bracket included) |
| Horizontal mounting | no |
| Usb port for computer monitoring | yes |
| Nozzle tamper | yes |
| Serial interface RS232 with UR FOG Standard protocol | yes |
| Lan Connection : Active Cloud | opzional |
| Heating system “Layer” | yes |
| Coverage in a single shot (visibility more than 1,5 m) | up to 14000 m3 |
| Coverage in a single shot (visibility less than 1 m) | up to 4500 m3 |
| Max seconds of fog emission | 200 sec |
| Max fog emitted with full fog bag | 9000 m³ |
| Number of bag | 1 |
| Fog tank capacity | 1 x 5000 ml |
| Shooting specification | programmable in seconds |
| Bag included | 1 |
| Mains power | 230 V or 120 V |
| Average power consumption | 80 W |
| 7,2 Ah 12V back up battery (not included) | yes |
| Pir sensor validation input | yes |
| Shot confirmation output | yes |
| Power supply | yes |
| Cod. FFLXRC50FG Fluid bag 5000 ml |
| Cod. FFLXRC50 Fluid bag 5000 ml |
| Cod. F23PRUG7 Nozzle extention 7 cm |
| Cod. F23KITD Demo kit : key, keyfob/receiver and button |
| Cod. URRE Relay board |
| Cod. URRS232 Transceiver rs232 5/12 V |
| Cod. URCLWF ActiveCloud LAN/WiFi board (optional WiFi antenna) |
| Cod. URCLWFS ActiveServer LAN / Wi-Fi board (optional WiFi antenna) |
| Cod. URREAC Relay board for mounting with Active Cloud/ Active Server board |
| Cod. URCLWFA WiFi antenna module |
| Cod. URCLWF014 External mounting Kit |
Cod. FPUM 2 handlers |
| Download | Fast 14000 Pump Pro Plus data sheet |
